Skylight

Transforms rooftops into breathtaking architectural features, flooding interiors with natural daylight while ensuring safety, durability, and performance. With ultra-slim frames and versatile geometries, it allows for stunning glass roofs, atriums, domes, and pyramids that elevate both residential and commercial spaces. Designed for modern luxury, this system combines elegance with advanced engineering to create bright, inspiring environments that connect people with the sky.

Features

Acoustic

Thermal Insulation

Security

Double & Triple glass

Large Dimension

Advantages

  • Expansive glass surfaces for maximum natural light
  • Slim structural lines for elegant, modern design
  • High thermal insulation for energy efficiency
  • Advanced water and air tightness for year-round comfort
  • Compatible with complex geometries (domes, pyramids, curved skylights)
  • Suitable for both small-scale residential and large-scale commercial projects

Specifications

Profile Depth Mullion / Transom
52mm up to 180mm
Type of Holding Glazing
Pressure Plate or Structural Silicon
Maximum Glass Thickness
up to 50 mm
Visible Aluminium Face
55mm
U-Value
Uf ≥ 1.5 W/(m²K)
Maximum Weight
180 Kg
Air Tightness
Class 4
Water Tightness
Class RE1200 (1200 Pa)
Wind Load Resistance
up to ± 2000 Pa
Sound Reduction
up to 44 dB

Typology

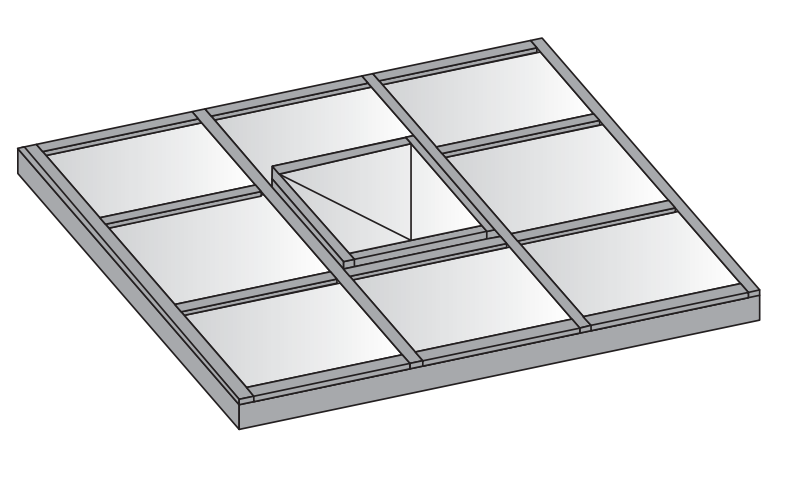

Skylight with Projected Window

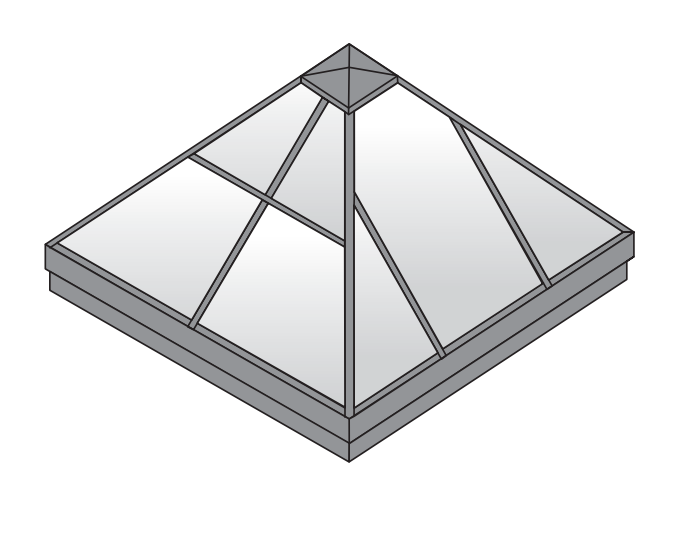

Pyramid Skylight

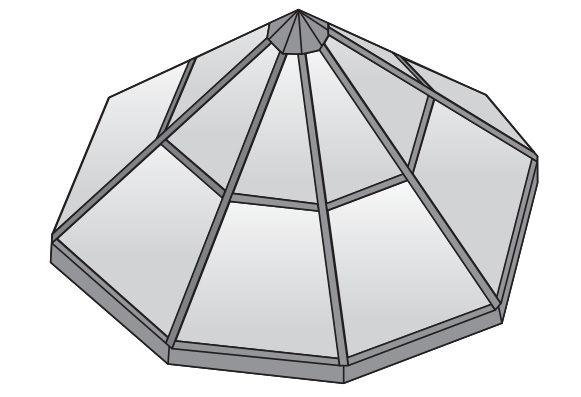

Polyhedron Skylight

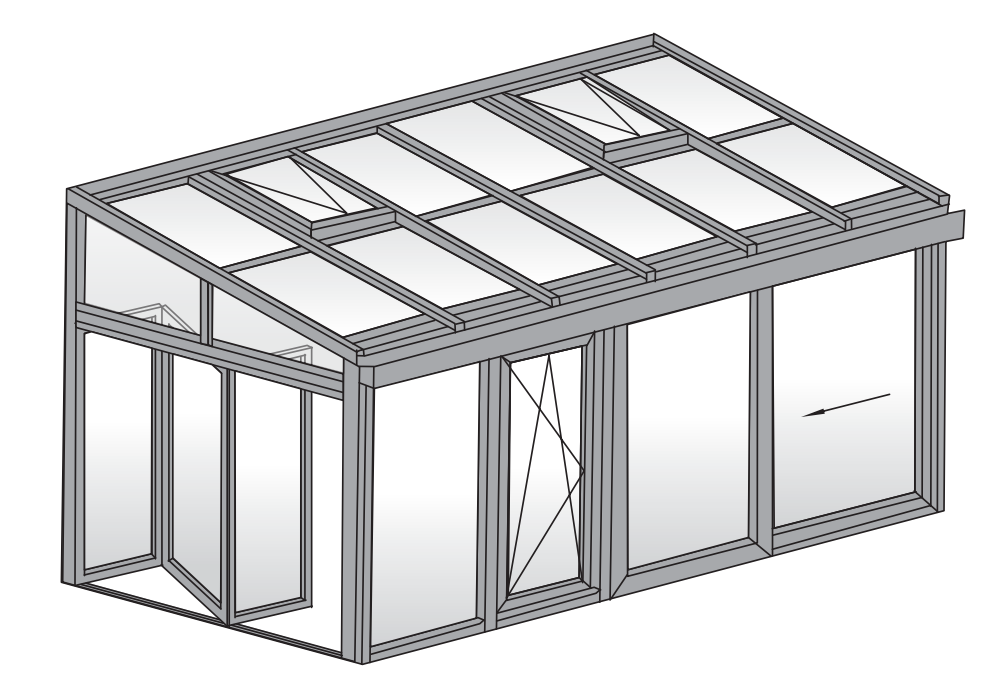

Skylight (wintergarden) with combination of other aluminium architectural systems

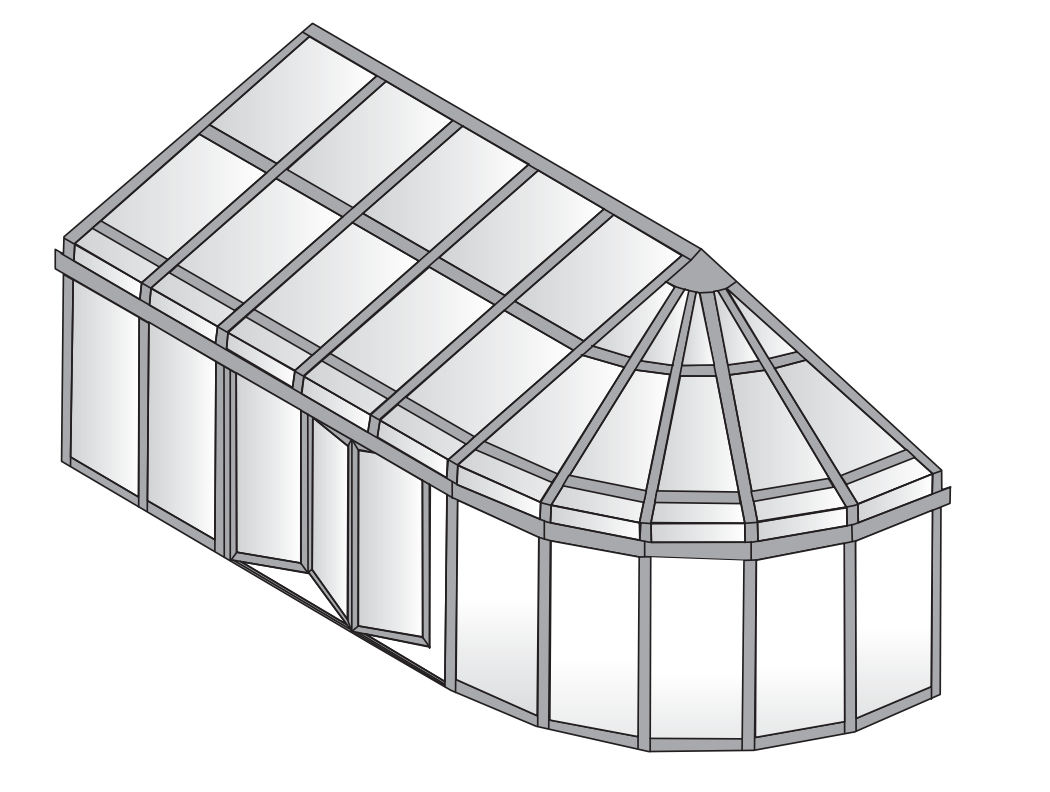

Conservatorium with combination of other aluminium architectural systems
