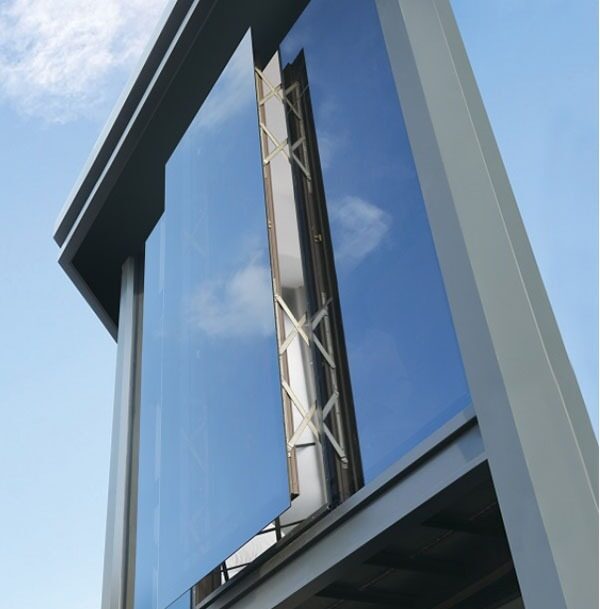

Parallel (Pop-out) Window System

Unique parallel opening mechanism that enhances natural ventilation and safety. With an opening width of just 80mm, it prevents accidental falls, making it ideal for high-rise buildings and children's rooms. This system combines functionality with aesthetic appeal, providing a sleek, mirrored façade while ensuring superior thermal and sound insulation

Enquire Now

Features

Advantages

Parallel Opening Mechanism: Allows fresh air to enter from the bottom and stale air to exit from the top, optimizing natural ventilation.
Safety-Oriented Design: Restricted opening width (~80mm) prevents accidental falls, especially in child-sensitive environments.
Thermal & Acoustic Insulation: High-performance glazing and frame materials ensure year-round comfort.
Weather Resistance: Excellent water and air tightness, suitable for harsh climates.
Motorization Options: Supports automation for large or heavy sashes.
Flush Façade Aesthetic: Maintains architectural uniformity while providing ventilation.

Specifications

Visible Interlock Sash

~25 mm

Visible Frame

Concealed Profile

Sash Weight

Up to 1000 Kg

Maximum Sash Width

3000 mm

Maximum Sash Height

5000 mm

Glass Thickness

Double/Triple Glass up to 46–60 mm

U-Value

Uw 1.1 W/(m²K)

Water Tightness

CLASS 9A (600 Pa)

Air Permeability Resistance

CLASS 4 (600 Pa)

Wind Load Resistance

C5 (2000 Pa)

Sound Reduction

Up to 46 dB

Burglary Resistance

RC3

Insulation Materials

Polyamides, PVC

Motorization

Optional – Based on Height & Sash Weight (Compatible with chain actuators)
