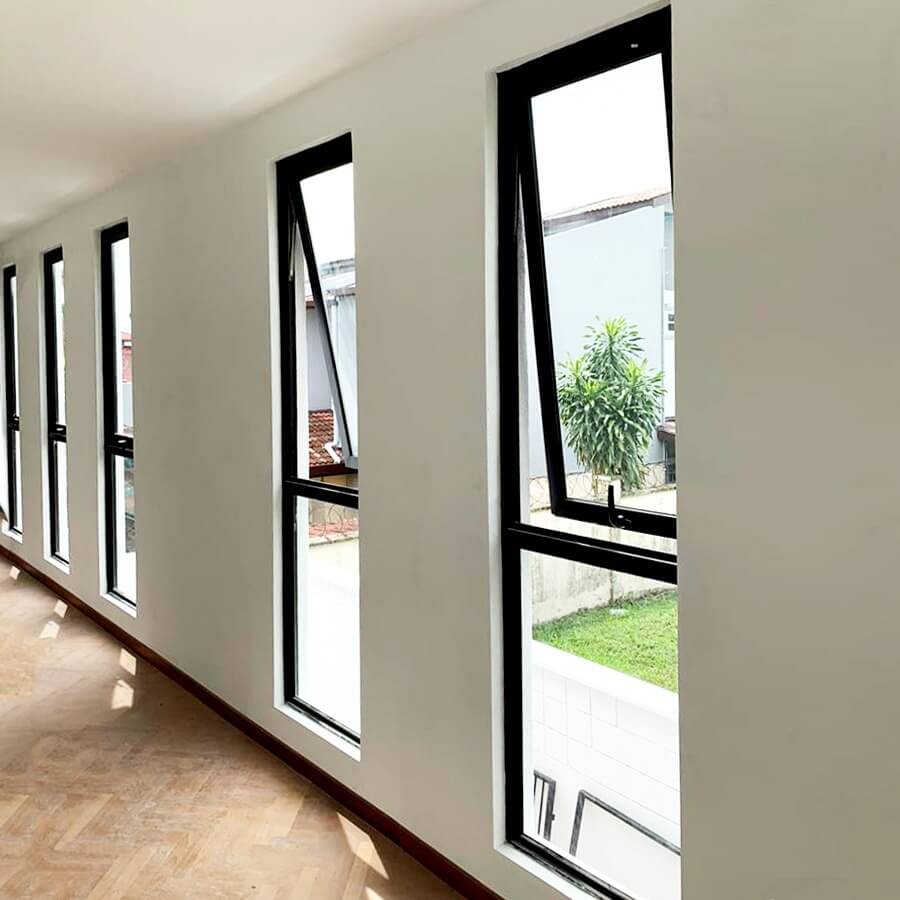

Minimal Casement Doors & Windows

designed with slim yet robust profiles that maximize light intake while ensuring excellent insulation and durability. With clean lines and seamless finishes, these systems offer an elegant solution for modern villas, high-end residences, and contemporary architectural projects. They combine sleek aesthetics with advanced performance, making them ideal for both inward and outward opening applications.

Features

Acoustic

Thermal Insulation

Security

Minimal Design

Double & Triple glass

Durability

Wheelchair Accessibility

Advantages

  • Slim profiles ensuring maximum natural light.
  • Excellent thermal and acoustic insulation.
  • High durability and weather resistance.
  • Flexible design options: tilt, turn, side-hung, top-hung, or pivot.
  • Smooth operation with high-performance hardware.
  • Enhanced safety with advanced locking mechanisms.
  • Wide compatibility with various glazing thicknesses.

Specifications

Sash Weight
180 to 220 Kg
Maximum Sash Height
3200 mm
Glass Thickness
Double, Triple Glass up to 58mm
U-Value
from Uw 1,1 W/(m²K)

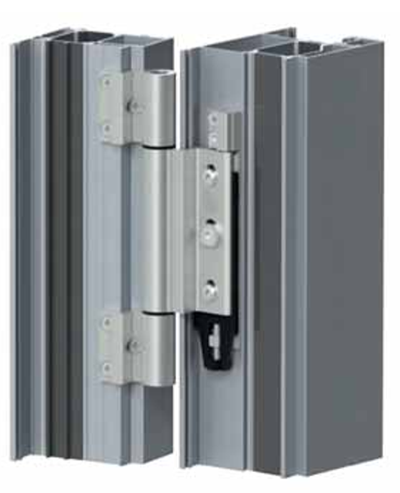

Mechanism
Euro-Groove, Euro-nut
Sealing
3-Levels with EPDM Gaskets
Water Tightness
CLASS E 1200 (1200 Pa)
Air Permeability Resistant
CLASS 4 (600 Pa)
Wind Load Resistant
C5 (2000 Pa)
Sound Reduction
47 dB
Burglary Resistant
RC2/RC3
Insulation
Polyamides, PVC

Typology

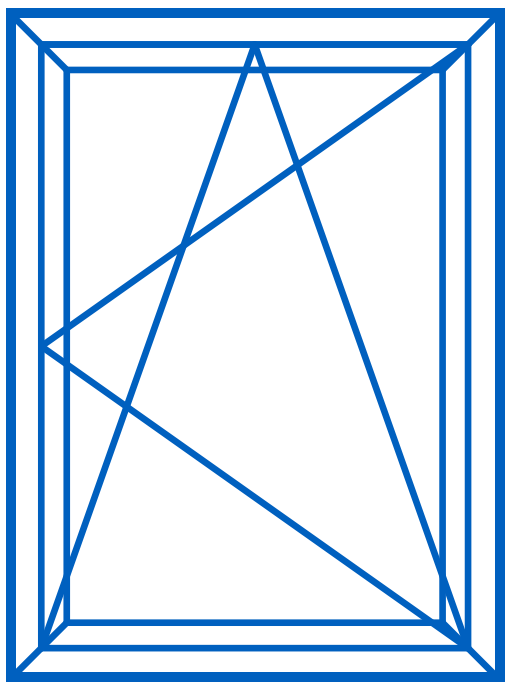

Window – 1 Sash

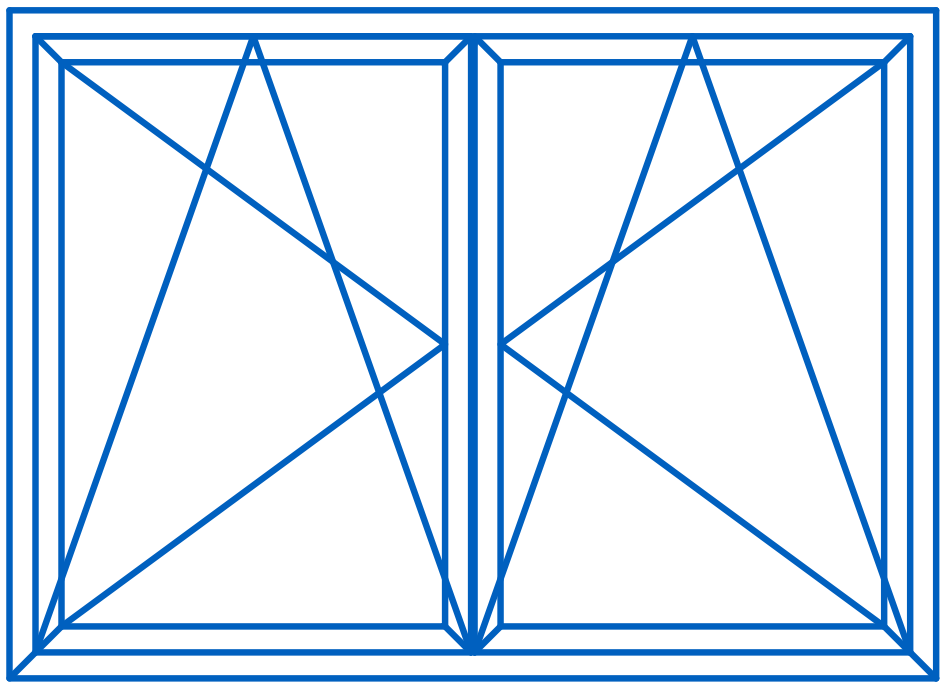

Window – 2 Sashes

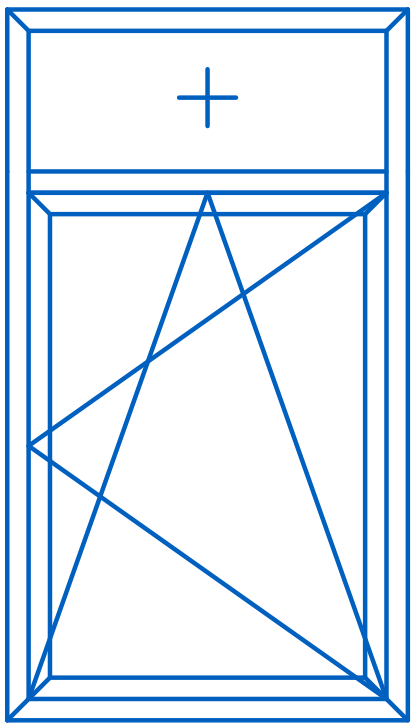

Window – 1 Sash / Top Fixed

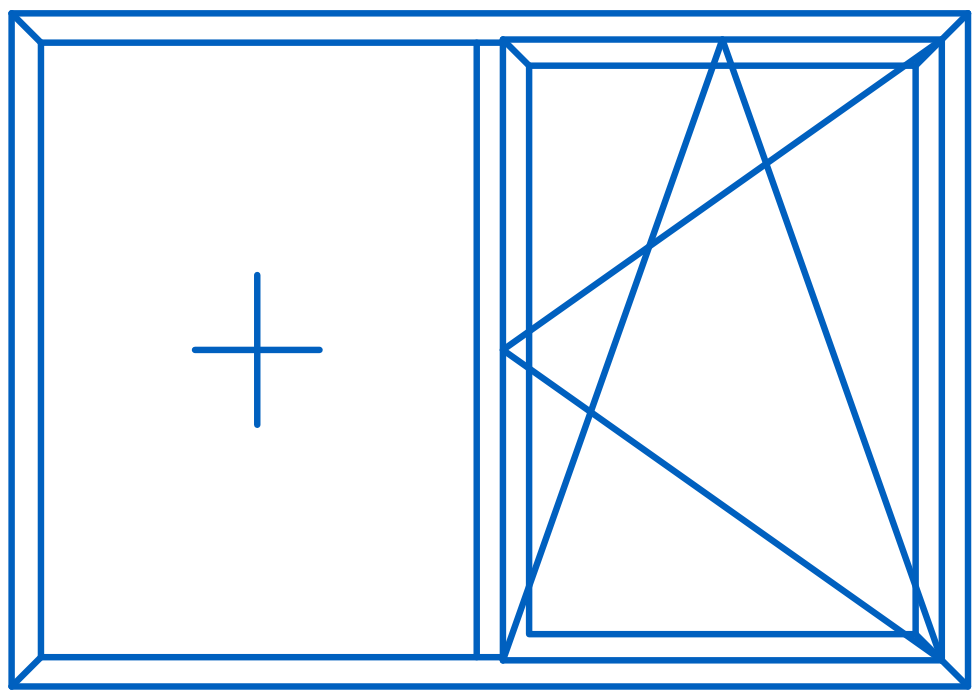

Window – 1 Sash / Side Fixed

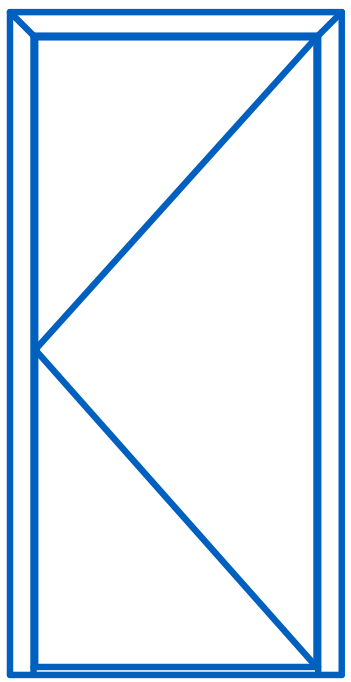

Door – Single Leaf

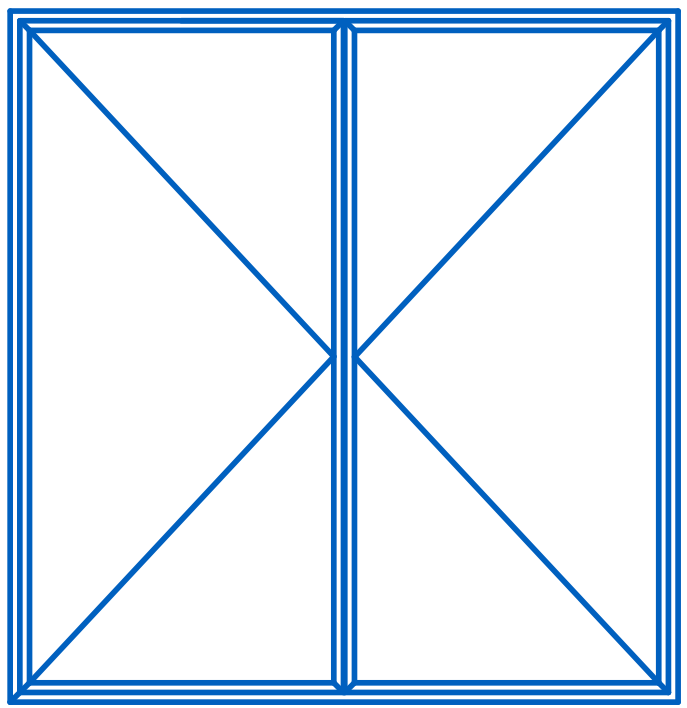

Door – Double Leaf

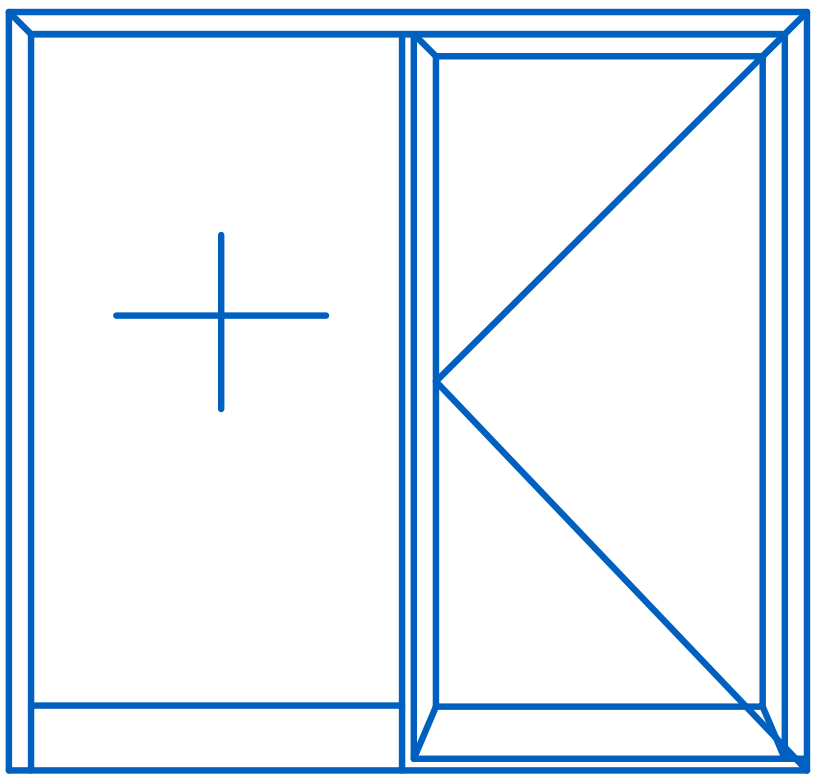

Door – Single Leaf / Side Fixed
